4K HDMI Extender Transmitter Receiver Over Cat5e/Cat6 RJ45 Ports
HDMI Extender Loop 120m HDMI Extender IR For PS4 HDTV
Description:

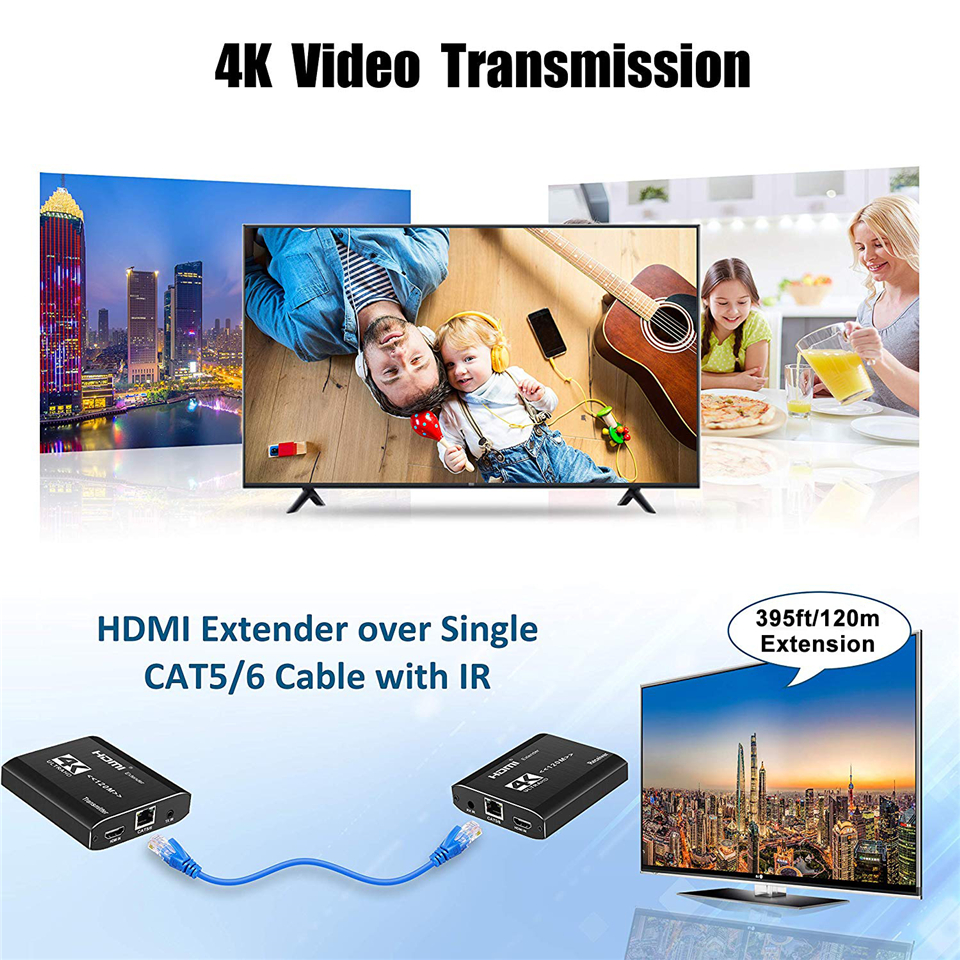

HDMI extender provides extension of 4K HDMI signals long distances
over a single CAT5e/6/7 cable, it supports high resolution up to
3840*2160@30Hz,HDMI loop out,IR remote control and Cascade
connection function. Navceker extender can use for a wide range of
applications requiring long distance transmission of high
resolution with high quality by its good stability and powerful
security.
Features:
Transmits 4K HDMI video and audio signals up to 120m over CAT6,up
to 100m over cat5e ;
Support video resolution up to 3840x2160@30Hz, 3D signal;
Infrared control:unidirectional 20~60 KHz IR romote control;
HDMI Loop Out:The transmitter with one local HDMI loop output;
IEEE-568B:standard 802.3 Ethernet 10/ 100/ 1000Mbps;
Male to male: one TX to one RX applicataion;
Male to female:one TX to N RX(Max:12 pcs RX) application with
Cascade connection;
Uncompress,ZERO delay,no loss;
Compliance with HDMI 1.4 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear
and stable;
Built-in ESD protection system;
Simple to install, plug and play;
· HDMI EXTENSION UP to 395FT: With a single Cat5e/6 cable, you can
easily extend HDMI audio/video signals for up to 395ft. Connect
your HDMI source device (PC, game console, Blu-ray player, media
player) to the Transmitter, utilize existing Ethernet structure in
your house/office to connect the transmitter to Receiver, then
connect your HDTV from a remote location to the Receiver with an
HDMI cable.
· NETWORK DISTRIBUTION with MULTIPLE DISPLAYS: Navceker HDMI
EXTENDER supporting Point-to-Point, Point-to-Many connection for
multiple HDMI video sources displaying over CAT5e/6/7 cable up to
120M HDMI signal. Perfect for church services, sports bars,
exhibitions, advanced home theater set ups.( Cascade connect up
12pcs of 120m at most)
· Support up to 4K@30hz resolution, transmission distance up to
120m, Support DTS/Dolby/LPCM audio format, Data transfer speed 10.2
Gbps. For better picture quality and longer distance transfer, we
recommend to use Cat 6 or Cat 7 cable.
· IR REMOTE CONTROL: one directional IR control from RX side to TX
side, Allow source device to recognize remote commands; You can
control the HDMI source device at a secondary location with the
included IR cables that Forward commands over a CAT5e/6 cable more
convenience.
· No software is required, plug and paly. One year warranty from
Navceker.
Specifications:
Length of CAT-5E/CAT-6 cable between Rx and TX: up to 120 meters
HDMI input and output : 4K/1080p/720p/576p/576i/480p/480i
Support audio format: DTS/Dolby/LPCM
Max bandwidth: 340MHz
Max baud rate: 10.2Gbps
Input HDMI cable distance: ≤15m AWG26 HDMI standard cable
Output HDMI cable distance: ≤15m AWG26 HDMI standard cable
TX Max working current: 350mA
RX Max working current : 200mA
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output:
DC5V/1A
Operating Temperature range: (-15 to +55℃)
Connection and operation:
1. Connect HDMI source device with transmitter by one HDMI cable,
the cable max length is 15 meters.
2. Connect HDMI display device with receiver by one HDMI cable, the
cable max length is 15 meters.
3. Connect TX with RX by one cat5e or cat 6(recommended), the cable
max length is 120 meters.
4. One pair of IR RX and IR TX cable, connected to the 3.5mm IR RX
and IR TX ports of the transmitter and receiver respectively.
5. Connect the power supply to the TX and RX.
6. LED indicator:When a signal is input to work, steady blue light.
Package includes:
1. HDMI Extender Transmitter 1 PCS
2. HDMI Extender Receiver 1 PCS
3. IR cable 2 PCS
4. 5V/1A Power adapter 2 PCS
5. User Manual 1 PCS
