1.0 INTRODUCTION
SCART +HDMI to HDMI converter can convert 480I(NTSC)/576I(PAL)
format signal to 720P/1080P HDMI signal output, also it can connect
with the high definition HDMI input interface, Easily connect with
the DVD, set-top box, HD player, Game Console
(PS2,PS3,PSP,WII,XBOX360 etc).
2.0 FUNCTION:
1).HDMI output interface: connect with high definition TV or high
definition projector HDMI output format:720P@50/60Hz, 1080P@50/60HZ
Audio output format: Digital coaxial audio, analog stereo audio
2). SCART input interface: DVD, set top box, other players.
SCART input format: PAL/NTSC_M/NTSC4.43/SECAM/PLA-M/PAL-N
3). HDMI input format:
480I/576I/480P/576P/720P@50_60Hz/1080I@50_60Hz/1080P@50_60Hz
Compatible with several DVI format: 800X600,1024X768,1280X1024,
1360X768, 1680X1050,1920X1080 etc.
4). 3.5mm audio interface: Connect with analog audio amplifier or
headphones input interface
5). Digital coaxial output: Connect with digital audio amplifier.
3.0 Features:
1) .Scales SCART Signal (RGB or Composite Video) to HDMI 720p or
1080P;
2).HDMI output: 720P, 1080P;
3).SCART audio is integrated into HDMI out as well as pass-through
to earphone or sound box output;
4).Automatically detect RGB(50/60Hz), Composite Video(NTSC/PAL);
5).Auto-store setting of output resolution.
4.0 Physical interface schematic diagram:
1. HDMI
IN------------------------------------------------------HDMI input
interface
2. SCART IN---------------------------------------- SCART signal
input interface
L/R IN----------------------------------------------------- AV
audio input interface
3. DC/5V:---------------------------------------------------DC
power input interface
4. HDMI OUTPUT--------------------------------------------HDMI
output interface
5. AUDIO---------------------------------------------Analog audio
output interface
6. Coaxial------------------------------------Coaxial digital audio
output interface
7. SCART (CVBS)/HDMI--------------SCART or HDMI input switching
button
8. 720p/1080p--------------------720P or 1080P HDMI output
switching button
9. 50HZ/60HZ(PAL/NTCS)-----------50Hz or 60Hz HDMI output state
button

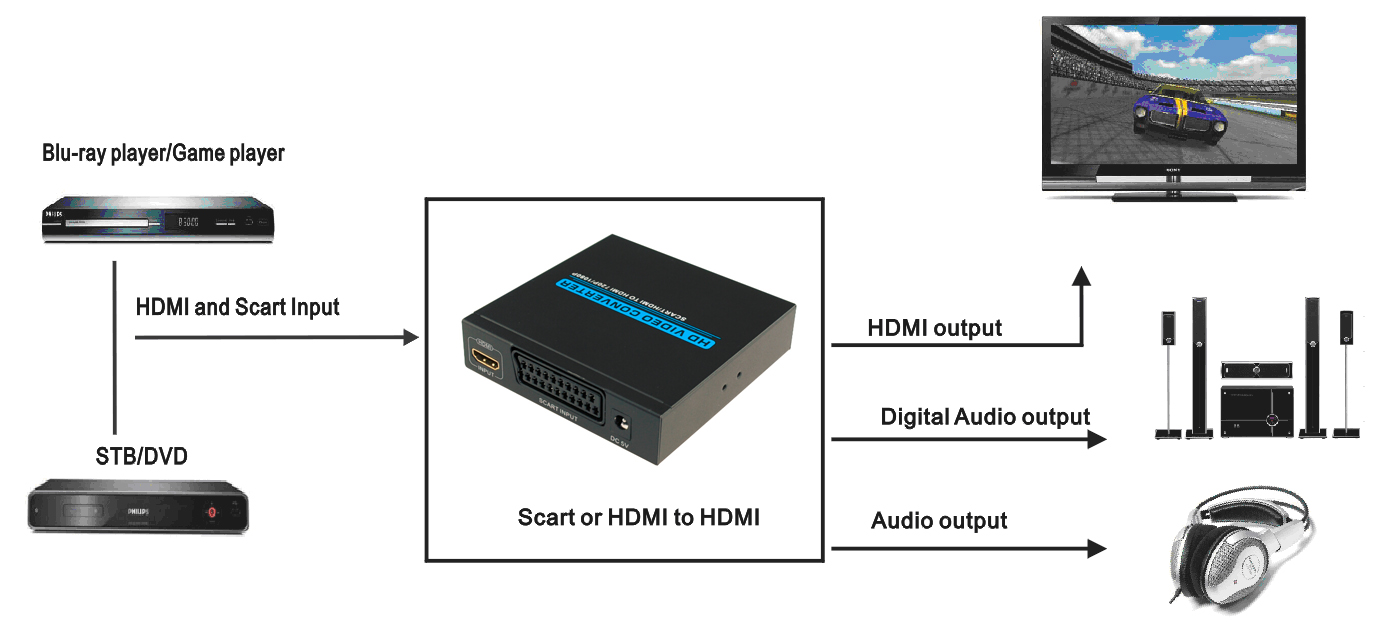

5.0 Connection diagram:
