MINI HDMI TO VGA Audio Converter
1.0 INTRODUCTION
This kind of HDMI to VGA and Audio Converter converts. HDMI signal
into analog VGA video and audio signal. It allows users to enjoy
their high definition image and sound when watching movies or
playing games on the traditional VGA monitors or projectors. It
offers solutions for digital entertainment center, HDTV retail and
show site, HDTV, STB, DVD and Projector factory, noise space and
security concerns, data center control, information distribution,
conference room presentation, school and corporate training
environments.
2.0 FEATURES
1. No need to install drivers, portable, flexible, plug and play;
2. Provide advanced signal processing with great precision, colors,
resolutions, and details;
3. Support Max HDMI 1080p@60Hz or 1920x1200 input;
4. Support VGA 1080P or 720p output；
5. No power supply, USB-powered mode.
3.0 SPECIFICATIONS
1. Input port: HDMI A TYPE；
2. Output ports: 1xVGA,1xAudio；
3. Dimensions (mm): 60.5(L) x55(W) x20(H)；
4. Wight (g): 40；
5. HDMI input: Max 1080P@60Hz；
6. VGA output: 1080p@60Hz, 720p/60Hz.
4.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and
make sure the following items are contained in the shipping carton:
1) Main unit (HDMI to VGA Converter)-----------1PCS
2) USB Cable or 5V 1A Power adapter------------1PCS
3) User Manual----------------------------------------1PCS
5.0 PANEL DESCRIPTIONS

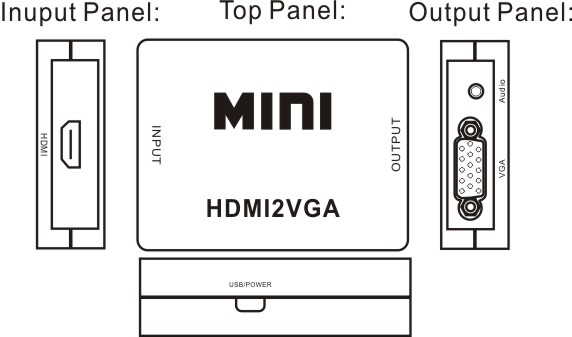

Please study the panel drawings below and become familiar with the
signal input(s), output(s) and power requirements.
HDMI---------------------HDMI signal input
USB POWER------------USB power input
VGA-----------------------VGA output
Audio----------------------Audio output
6.0 CONNECTION DIAGRAM
WARNING
1. Do not expose this apparatus to rain, moisture, dripping or
splashing And that no objects filled with liquids, such as vases,
shall be placed on the apparatus
2. Do not install near any heat sources such as radiators, heat
registers, Stoves or other apparatus(including amplifiers)that
product heat.
3. Do not place sources of naked flames, such as lighted candles,
on the unit.
4. Clean this apparatus only with dry cloth.
5. Only use attachments/accessories specified by the manufacturer.
6. Refer all servicing to qualified service personnel.
